Injection Molding Machine Screws and Barrels And All Other Material Feeding Accessories
4D Engineering offers a complete line of barrels, screws and accessories for all types of molding machines. Accessories include body adapters, nozzles, tip, seat, and ring. Our products are made of the best abrasion and corrosion resistant materials and are guaranteed to last twice the life of your current feeding units.
All of our products are:
- Manufactured from special wear resistant steel with exceptional toughness and hardness – CPM 10V & Vanadis 10 or D2
- Hardened throughout to the strength of approximately 300K-325K PSI
View our Product Gallery
INJECTION MOLDING BARRELS: (Click on thumbnail to enlarge)
|

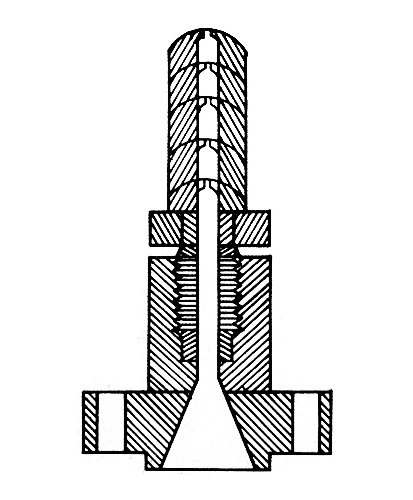

For all types of machines, all types of threads, and any length of nozzles. |
|

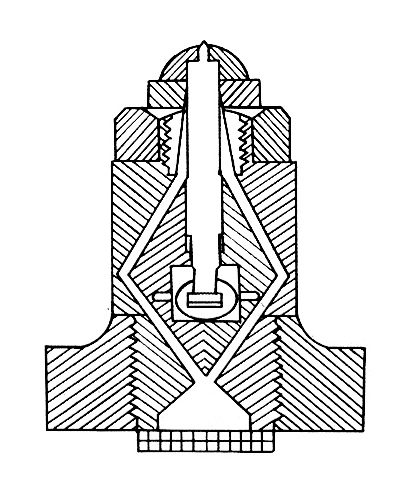

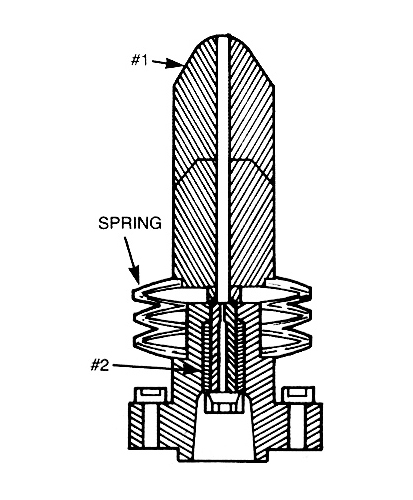

When the shut off nozzle is collapsed (See #1 Nozzle) the channels for the plastic come in to contact with each other from the shut off body and the shut off nozzle (See #2 channels). When backing away the spring will dislocate the nozzle and body material channels (see springs) and will shut off. |
|
Can be operated mechanically or on injection pressure. Has a life expectancy twice that of anything comparable on the market. |
INJECTION MOLDING SCREWS:
|

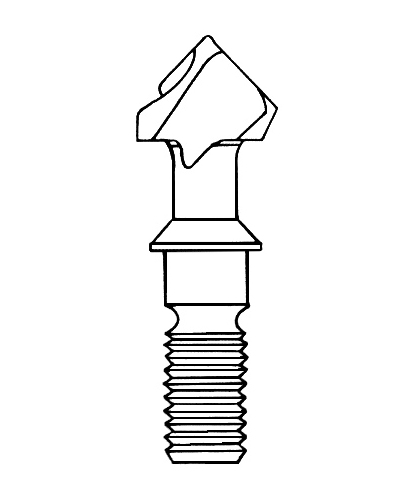

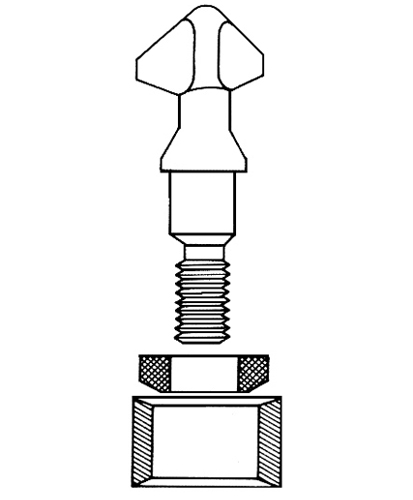

The contact area with the injection ring is large and will insure long life expectancy. The exit slots are cut in the same direction as the reciprocation rotation. This improves the reciprocation and will not break up the fibers and destroy the strength of the product like ordinary tips. |
|
The exit channels are in the opposite direction of the reciprocating rotation therefore it has an extensive mixing effect in the front. |
|

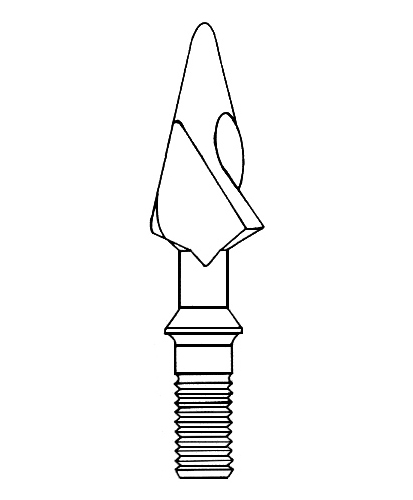

The exit channels are large and have a negative angle toward the front. High wear and good reciprocation is the end result.
|
back to top
Manufacturing Tool Steel:
- Crucible CPM® 10V and Vanadis 10 Powdered Tool Steel -- CPM 10V is a unique tool steel made by the Crucible Particle Metallurgy Process, and Vanadis 10 is made by Uddeholm of Sweden which enhances toughness and heat check resistance.
For more information, download (PDF – 168.84 KB) data sheet.
- Crucible CPM® 10V Tool Steel (AISI A11) -- CPM 10V is a unique tool steel made by the Crucible Particle Metallurgy process. It is designed with a tough, air hardening base analysis with added high carbon and vanadium for exceptionally good wear resistance, toughness and strength for cold and warm work tooling applications.
For more information, download (PDF – 369.84 KB) data sheet.
- Crucible CPM® 420V (AISI 420 modified with high vanadium) -- CPM 420V is a unique tool steel made by the Crucible Particle Metallurgy process. It is designed from a martensitic stainless steel base analysis, with high vanadium and carbon added for exceptionally good wear resistance.
For more information, download (PDF – 393.35 KB) data sheet.
- AIRDI® 150 (AISI D2) -- AIRDI® 150 is a high carbon, high chromium heat treatable tool steel intended for applications requiring high wear resistance.
For more information, download (PDF – 320.16 KB) data sheet.
- Thyssen 4140 Holder -- Thyssen 4140 Holder material is supplied preheat treated to Rc 24/32 (248-302 BHN). It is a free machining alloy tool steel designed especially for plastic mold base material and for holder blocks for die casting dies.
For more information, download (PDF – 289.49 KB) data sheet.
- Vanadis® 10 Powder Metallurgy Cold Work Tool Steel -- Isotropic mechanical properties (greater reliability in production), Increased toughness (less down time), Higher wear resistance (longer tool life)
For more information, download (PDF – 145.59 KB) data sheet.
For more information about our products call us at 800.624.2213 or complete our Request a Quote form.
